AMX AXCENT3
Integrated Axcess System

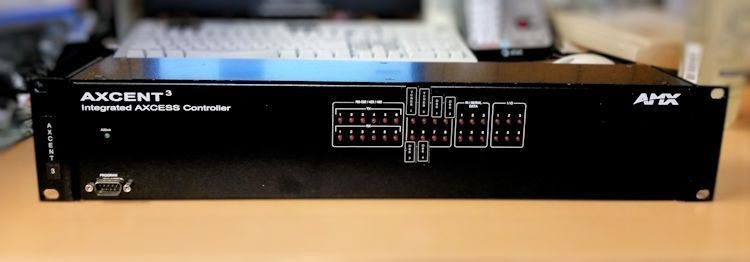

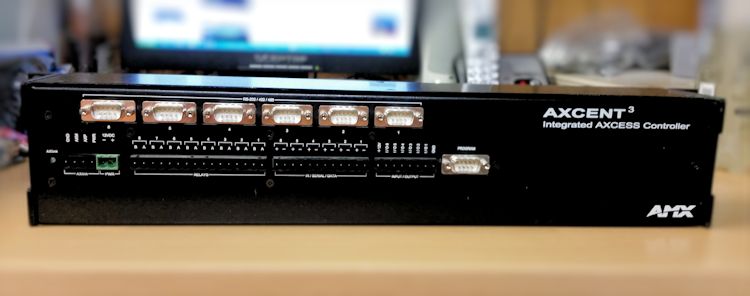

Actual Picture of item

Sellers Note:

This unit has been tested to work and will arrive exactly as pictured even if it is stated in the description below it will only arrive with what you see pictured. Please look over the manufacturers description below. Note that this unit will arrive with no phoenix connectors, cables, power supply or software at all.

Manufacturers  Description:

The Axcent3 Integrated Axcess System and Axcent3 PRO Integrated Axcess Control Frame offer versatile, high-density multiport control. They can act as a system master or server, allowing multiple Axcent3 units to be combined in the same system – an AMX exclusive feature. Ports have new power – IR ports can send one-way RS-232. I/O channels can provide automatic, sensed IR power control. RS-232/422/485 ports can operate at up to 115,200 baud. All ports are software configurable by Open AXCESS and AMX Studio Software.

CONTROL PORTS:
* Six IR/Serial/RS-232 ports (One-way RS-232 300-38,400 baud, 0-5 VDC)
* Six RS-232/422/485 ports, 9-pin male D-sub connectors (2-way 300-115,200 baud),  XON/XOFF, CTS/RTS
* Eight relays (normally open) rated at 750 mA, 28 VAC/24 VDC
  * Six input/output channels, rated at 200 mA, contact closure or TTL logic inputs


POWER: 600 mA @ 12 VDC (minimum; not including control cards or bus devices)

DIMENSIONS (HWD): 3 1/2″ x 17″ x 3″ (88.1 mm x 432 mm x 76 mm)

WEIGHT: 5 lbs (2.3 kg)

This auction is guaranteed as described otherwise it is an AS-IS auction with buyer to pay all shipping. We post accurate images of all our auctions so please go over them by clicking each picture to get an expanded view so you can make sure you are getting exactly what you need.
