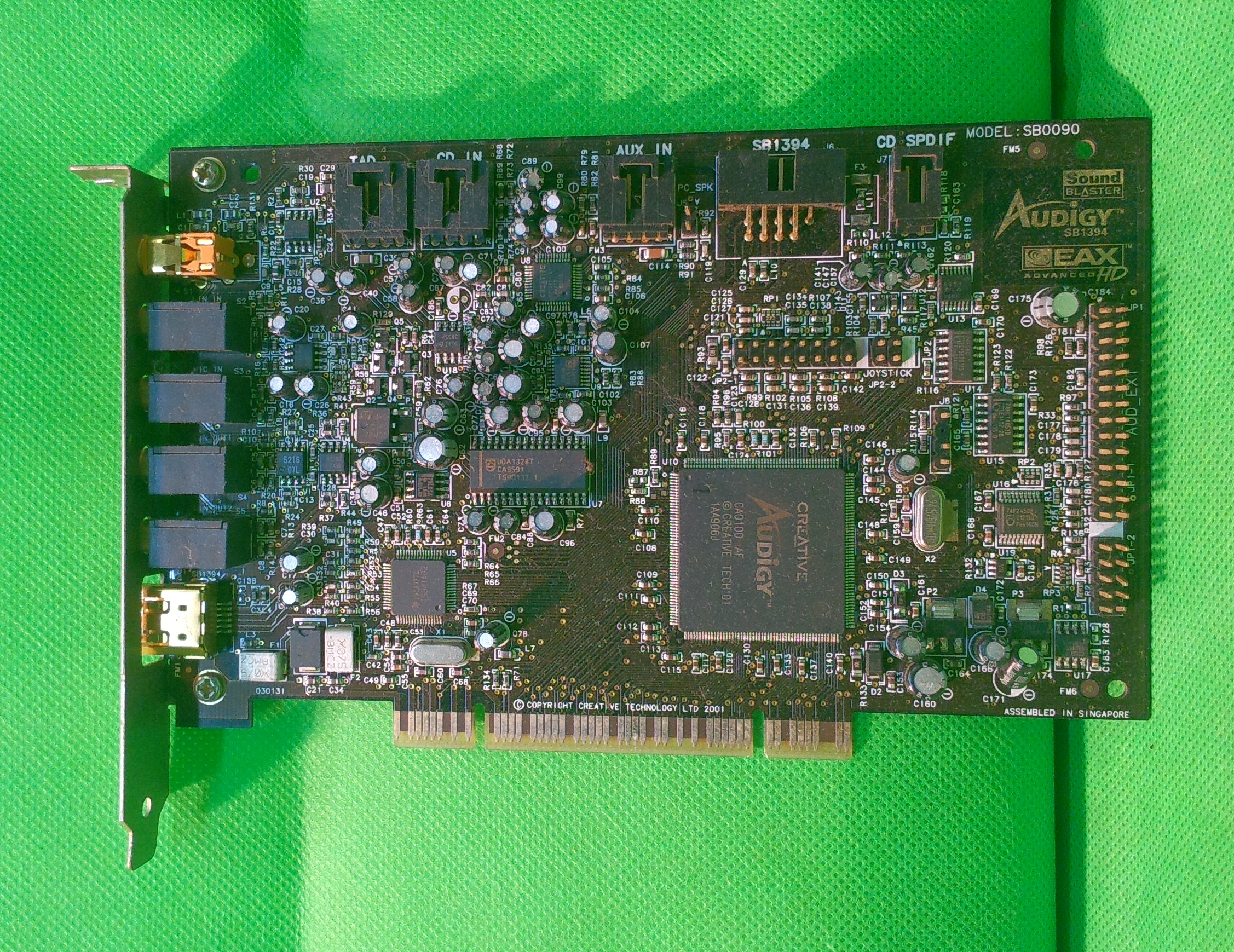

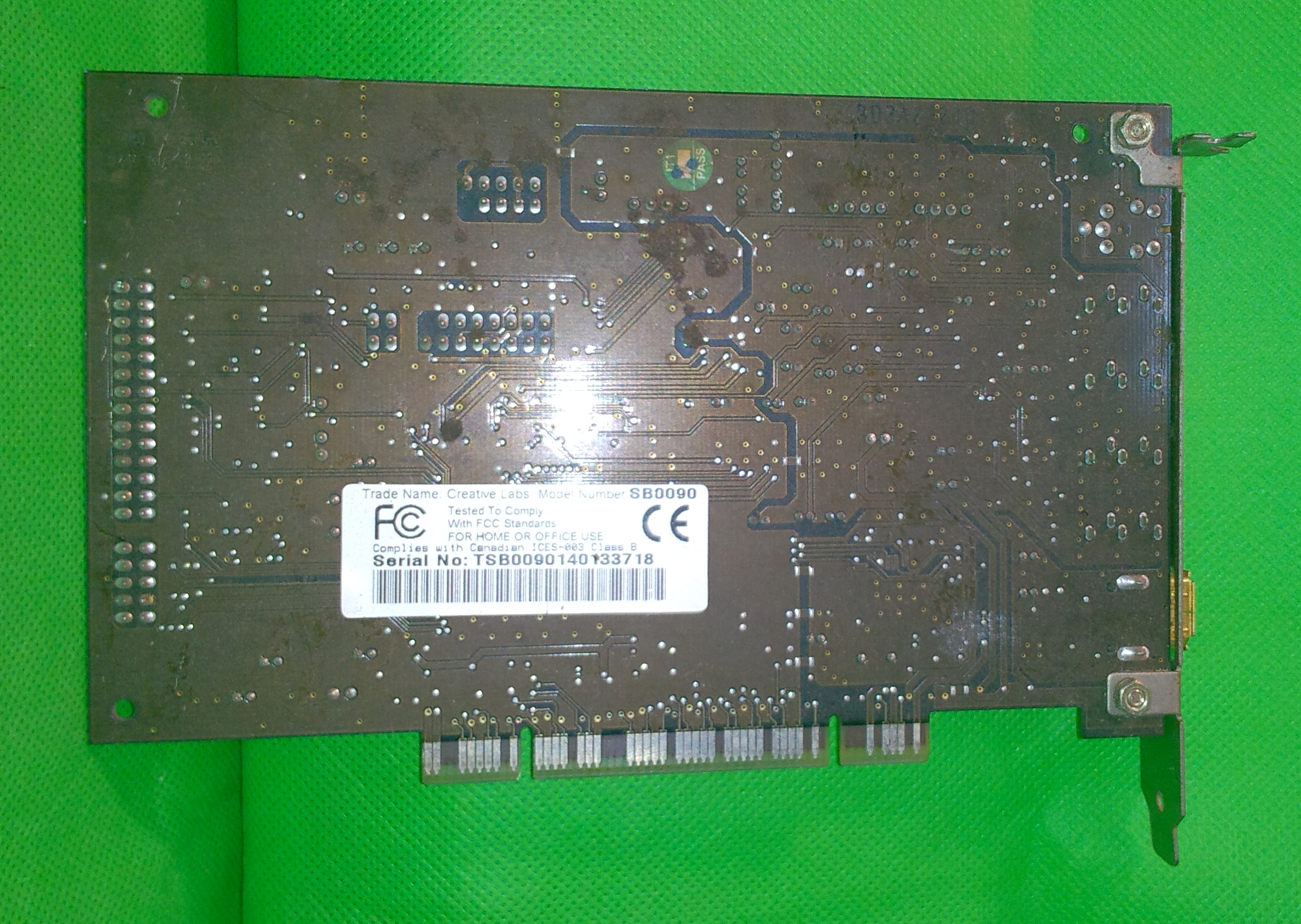

Genuine Creative Labs Sound Blaster Audigy EAX Advanced HD SB0090 GOLD EDITION

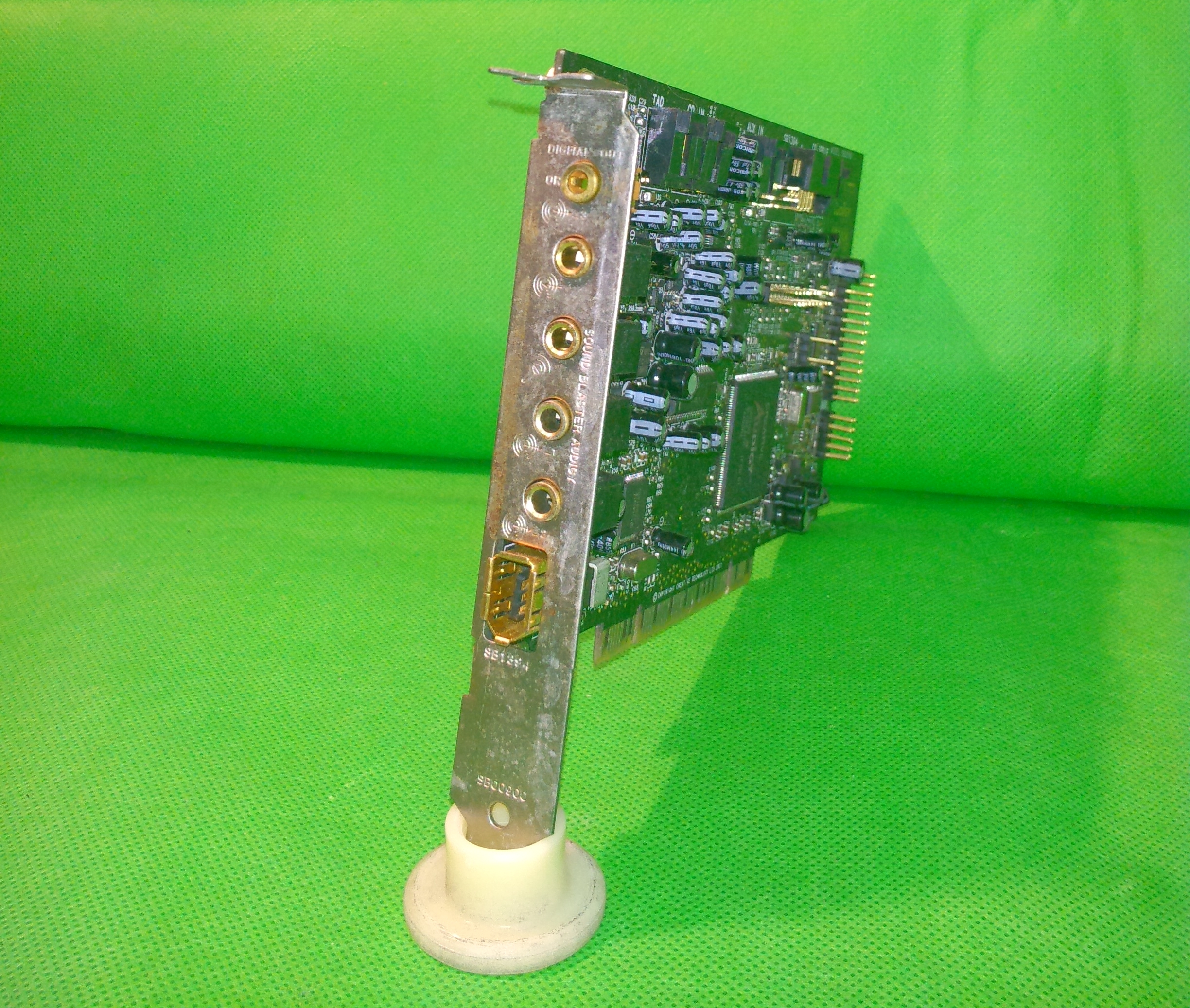

Gold jacks for solid audio cable connections.
PCI audio card has these jacks and connectors which allow you to attach other devices:
CD Audio connector (CD_IN)
Connects to the Analog Audio output on aCD-ROM or DVD-ROM drive using a CDaudio cable.
Telephone Answering Device connector (TAD)
Provides a mono connection from a standard voice modem,and transmits microphone signals to the modem.
Analog/Digital Out jack
6-channel or compressed AC-3SPDIF output for connection to external digital devices or digital speaker systems. Also supports Center and Subwoofer analog channels for connection to 5.1 analog speaker systems.
Line In jack (LIN_IN)
Connects to an external device (such as a cassette, DAT or MiniDisc player)
Microphone In jack (MIC_IN)
Connects to an external microphone for voice input.
Line Out jack (LIN_OUT)
Connects to powered speakers or an external amplifier for audio output. Also supports headphones.
Rear Out jack (LIN_IN2)
Connects to powered speakers or an external amplifier for audio output
AUX connector (AUX_IN)
Connects to internal audio sources such as TV Tuner, MPEG, or other similar cards
Internal SB1394 port (Optional)
Connects to J5 on the Audigy Drive
SB1394 port (SB1394)
Connects to an IEEE 1394 compatible external device (such as a digital video camcorder, digital still camera, printer or scanner)
CD SPDIF connector (CD_SPDIF)
Connects to the SPDIF (DigitalAudio) output (where available) on a CD-ROM or DVD-ROM drive
Joystick/MIDIconnector (Optional)
Connects to the Joystick/MIDI bracket
Audio Extension(Digital I/O)connector (Optional)
Connects to theAudigy Drive or DigitalI/O card
