Description

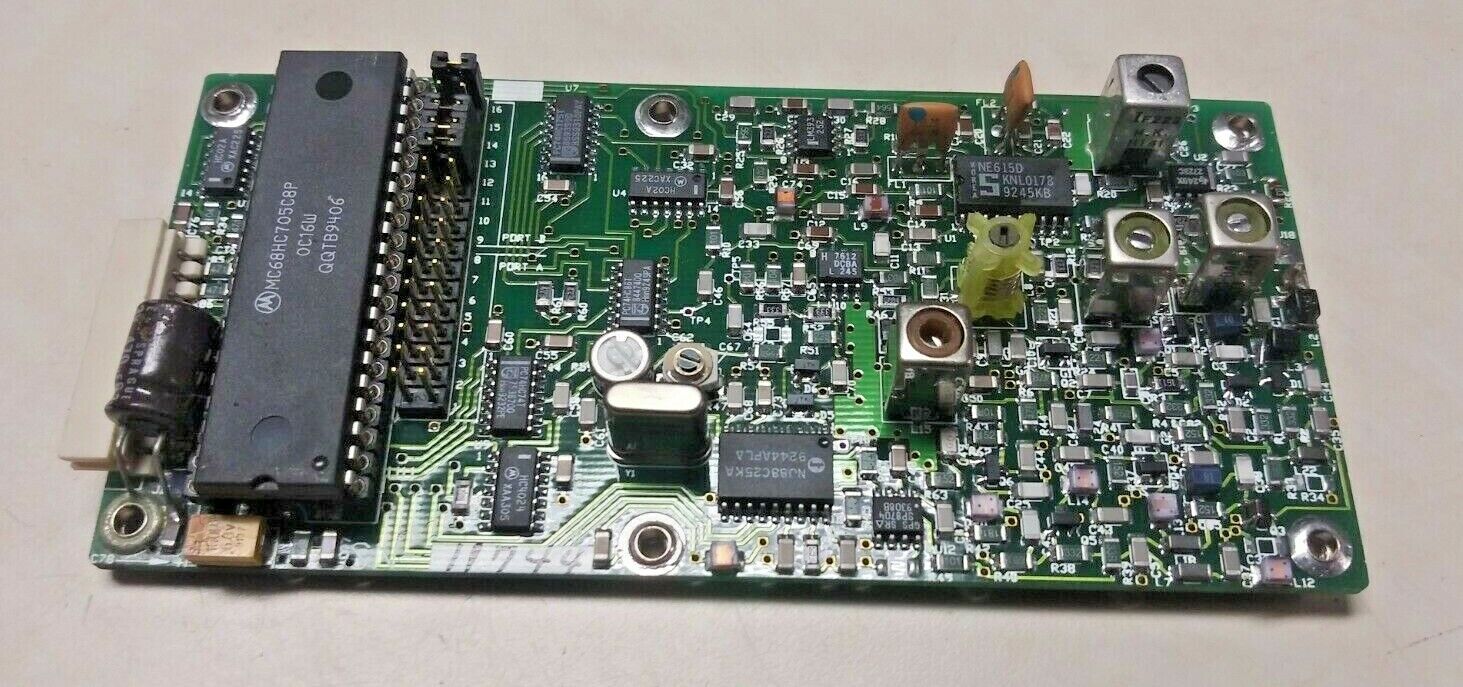

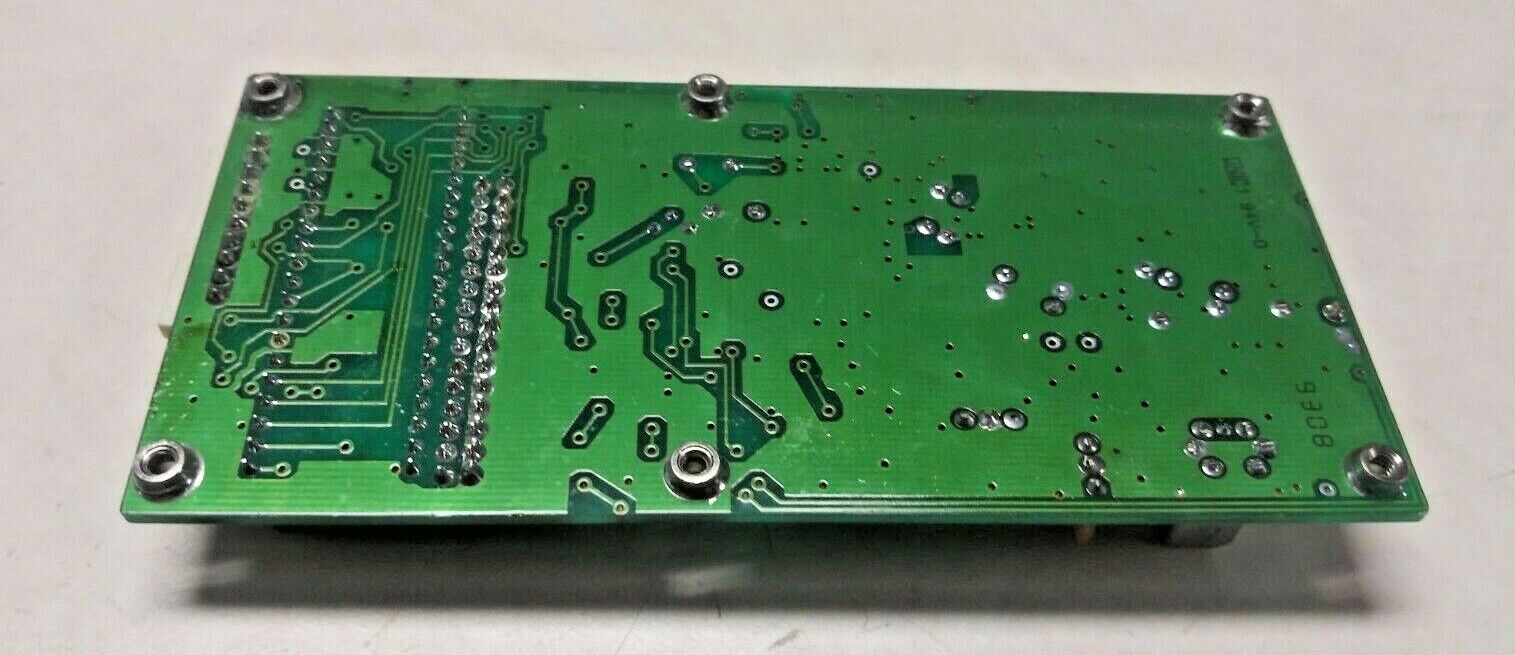

This 5″ x 2.5″ board is a parts bonanza of small SMT parts and includes coils, IDE jumpers, threaded standoffs and the following chips:
74HC02 x3
74HC74
74HC86
74HC175
SP8704 950MHz VERY LOW CURRENT MULTI-MODULUS DIVIDER (soic 8)
ICL7612 1.4MHz, Low Power CMOS Operational Amplifier (soic 8)
NJ88C25KA Frequency Synthesizer (soic 18)
NE615D mixer FM IF system (soic 20)
272BC op amp (soic 8)
393/236 Dual Voltage Comparator (soic 8)
68HC705C8P Pre programmed MCU
If you have a hot air gun the parts easily fall off as the solder is the older, easy to melt type. Originally a 2-way MCU controlled RF transceiver.
Sold for parts repair, no returns.
